It prevents temperature rise in battery cells under normal conditions and transforms into a flame-retardant foam in case of a fire, slowing the spread of fire and enabling comprehensive thermal management of the battery system.

Flame Retardant Pad (TYSR Series)

01

Excellent electrical insulation properties

02

In the event of a fire, it transforms into a flame-retardant foam to prevent the cell's thermal runaway

03

Excellent flame retardancy of UL94-V0 level

04

Satisfies RoHS and REACH standards

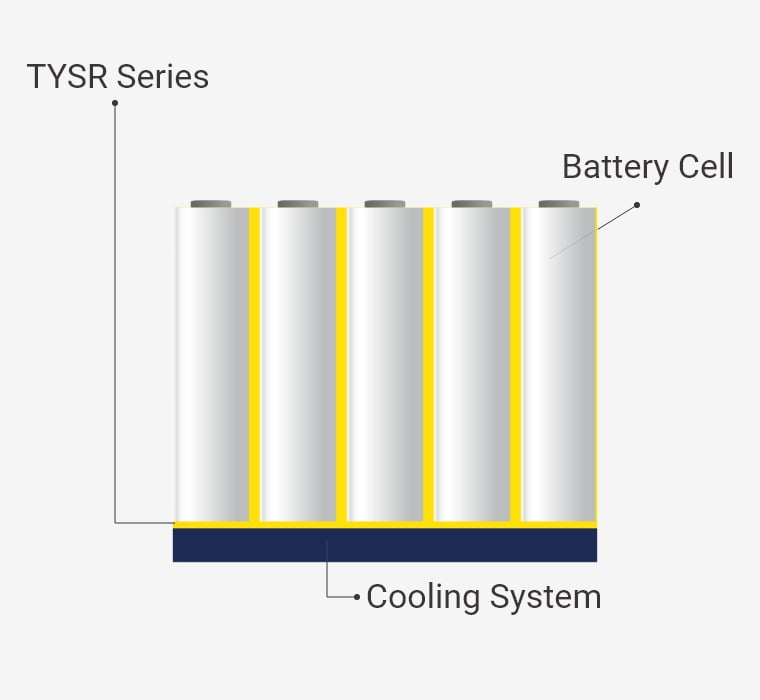

The operating structure of TYSR

  • Thermal Pad

  • Thermal Pad (TYSR Series)

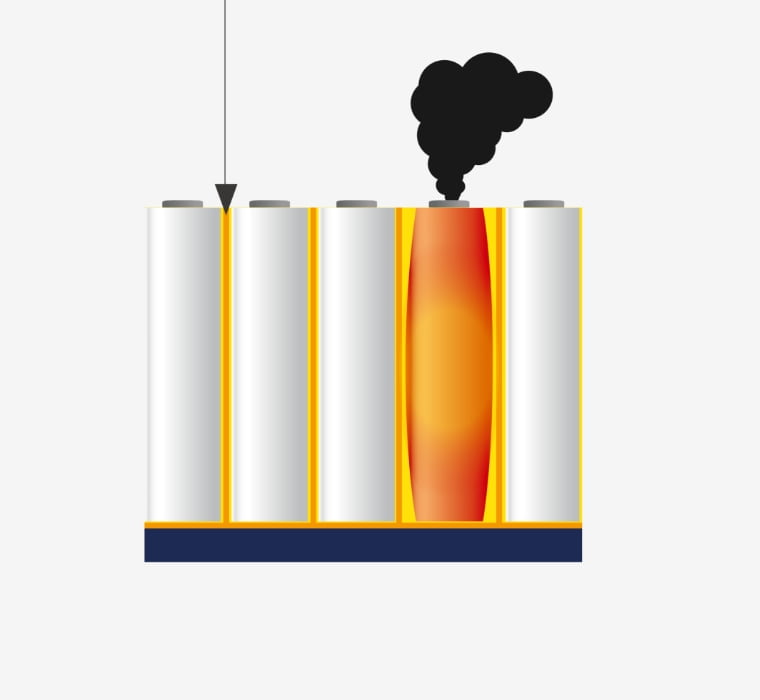

    Usual ThermalRunaway

  • Thermal Foam

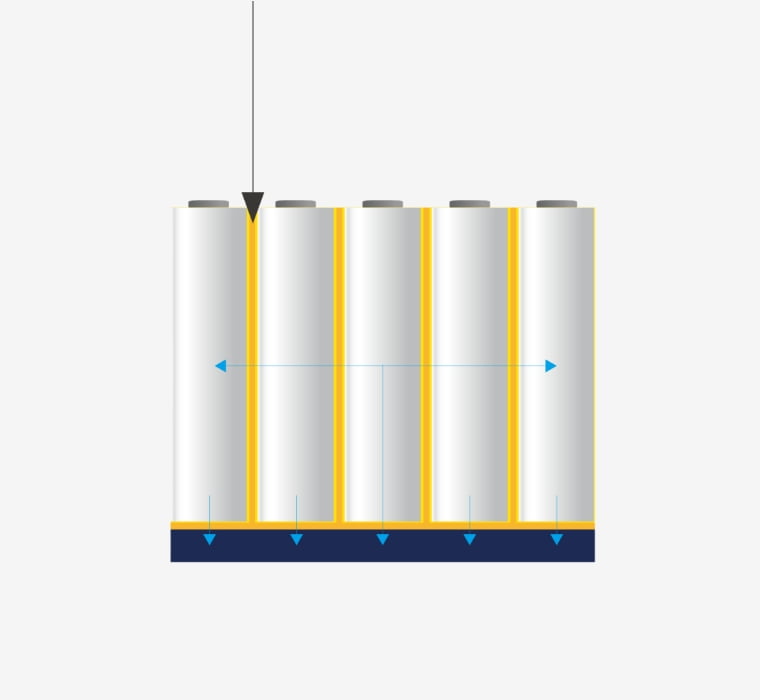

Maintains Cell Temperature (Thermal Dissipation) Delays Fire Propagation (Flame Retardant)

Performance Data

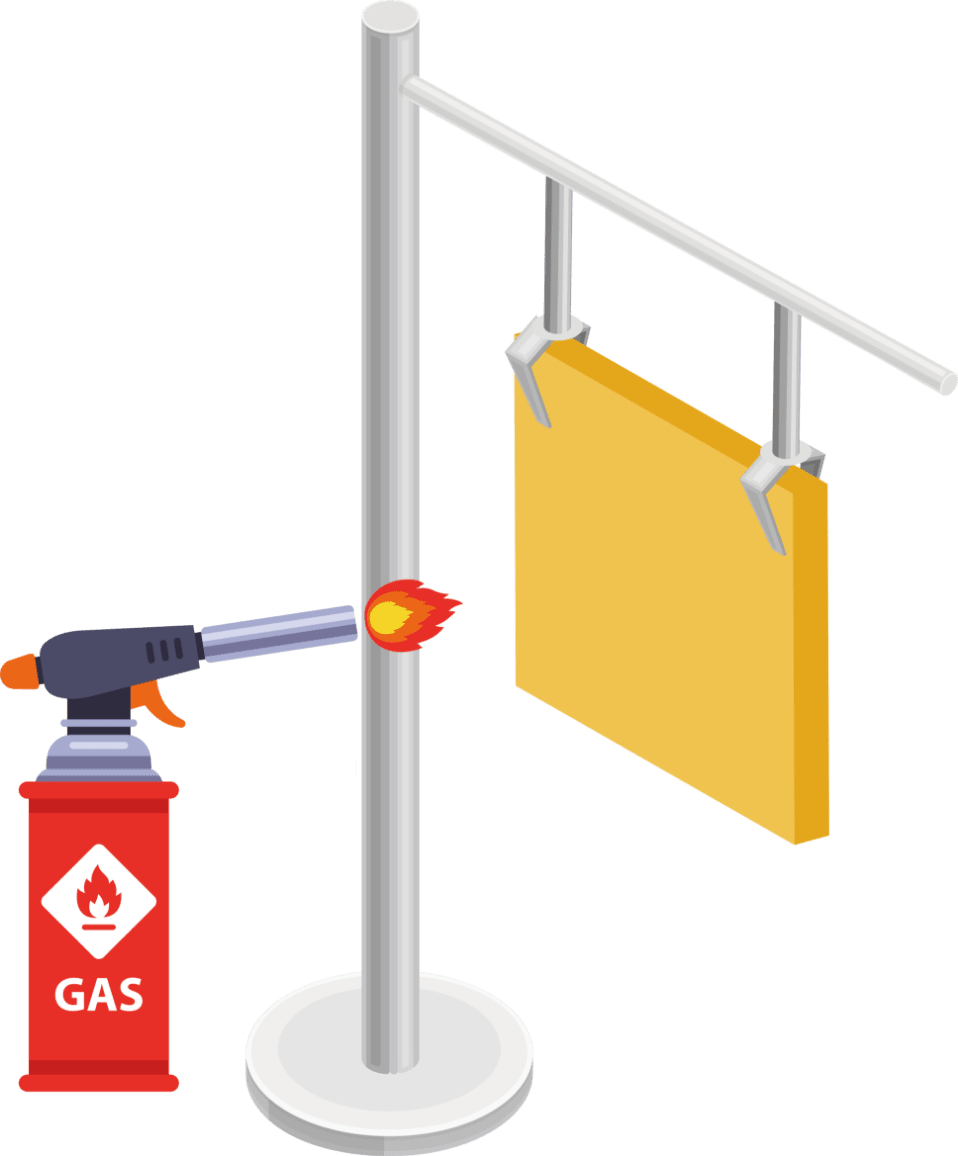

Test Results

  • TYSR Series

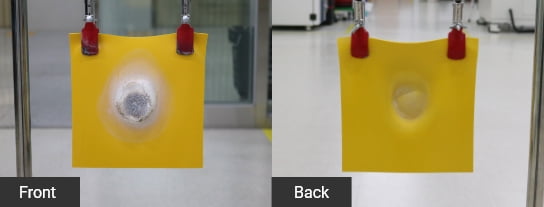

    The pad remained intact, with no residual flame after torch heating

    TYSS Series

    The pad ruptured, and residual flame was observed after torch heating

Specification

TYSR Series Test Method TYSR – 20
Appearance / Color – Yellow
Density [g/㎤] ASTM D792 2.0
Thermal Conductivity [W/m·k] ASTM D5470 2.0
Hardness [Shore 00] ASTM D2240 55
Breakdown Voltage [㎸/㎜] ASTM D149 > 10
Volume Resistivity [Ω·㎝] ASTM D257 1010
Flammability UL94 V-0
* Thickness can be customized according to the specifications desired by the customer.

Recommended Application
